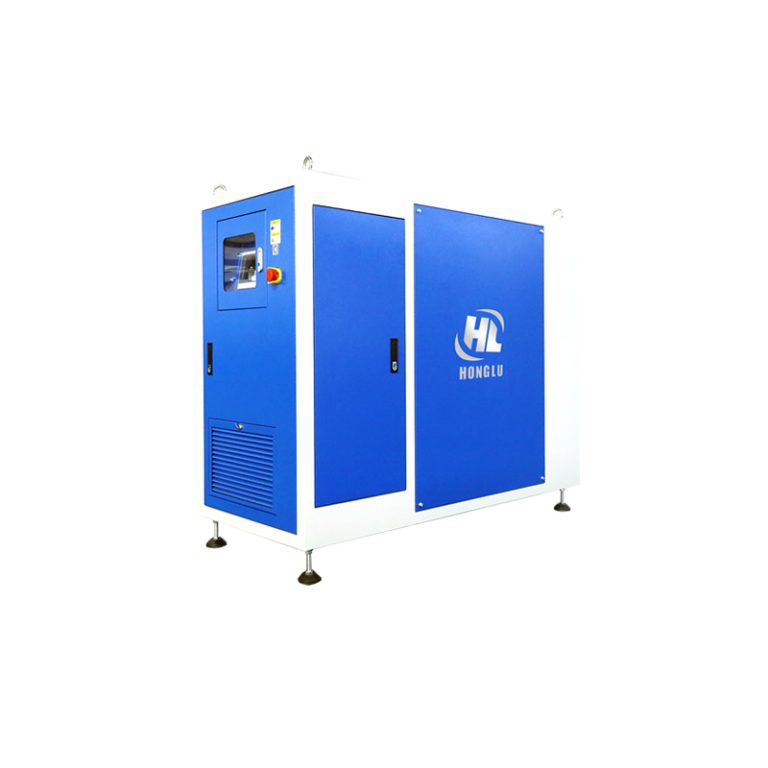

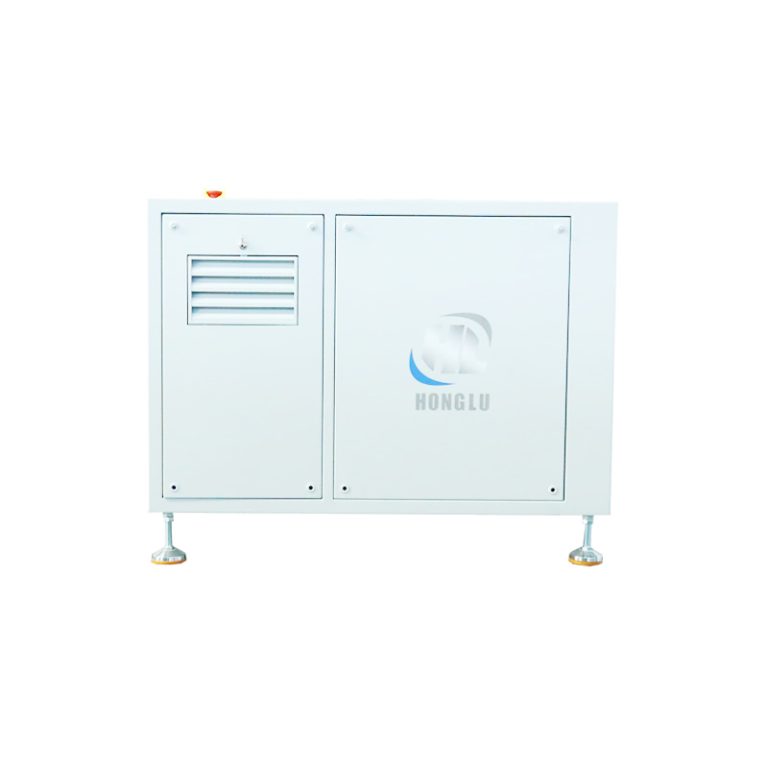

AIR BEARING CENTRIFUGAL TURBO BLOWER AIR BEARING CENTRIFUGAL TURBO BLOWER

AIR BEARING CENTRIFUGAL TURBO BLOWER

性能对比

Performance Comparison Roots Blower Air Suspension Blower Magnetic Levitation Blower
Compression Method Positive Displacement Centrifugal Centrifugal
Overall Efficiency (%) <62 >70 >70
Air Flow Regulation (%) 100 45~100 45~100
Noise Level (dB) >100 <80 <80
Vibration High none none
Lubrication System Oil Lubrication none none
Maintainability Regular maintenance Regular replacement of the filter element Regular replacement of the filter element
Size / Footprint Large Medium Small
Installation & Construction Requires floor anchoring and sound insulation none none
Product Model HGA5.5 HGA7.5 HGA11 HGA15 HGA22 HGA30 HGA37 HGA45 HGA55
Pressure(kPa) 40 Capacity(m³/min) 6 8 11.5 16 29 38 48 58 73
60 - 6 8.5 12 21 28 34 41 51
80 - - 6.5 10 17 22 26 32 42
Weight(kg) 95 190 190 190 300 300 300 370 370
Size(mm) L 800 1100 1100 1100 1360 1360 1360 1590 1590
W 500 680 680 680 750 750 750 750 750
H 790 840 840 840 1150 1150 1150 1350 1350
Outlet pipe diameter mm DN65 DN100 DN100 DN100 DN150 DN150 DN150 DN200 DN200
Power(KW) 5.5 7.5 11 15 22 30 37 45 55
